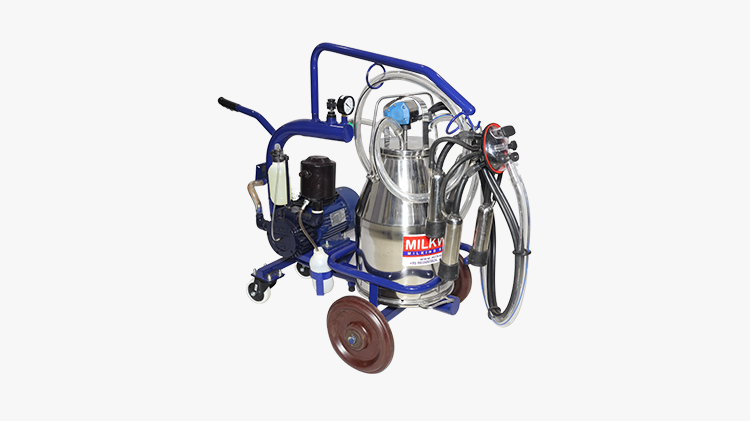

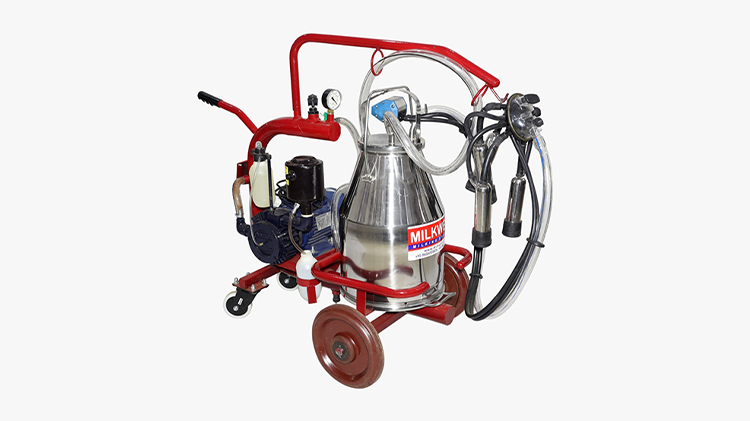

Single Bucket Trolley Type Milking Machine

Product Description

Single Bucket Milking Machine

Model MWT1- Super 01 hp

Milkwell Portable type Milking Machine Model MWT1 is well suitable milking equipment for a dairy farm of 01 to 15 milking animals

Vacuum Pump

Motor Power 01 hp
Rotation (rpm) 1440 rpm
voltage (V) 220V
Pump Type Oil re-circulatory oil chamber
Flow (L/min) 220 L/min
Exhaust Oil circulatory silencer

Milking Assembly

Milk Can Stainless Steel 304
Bucket Capacity (L) 1×25 Liter
Liner Type Rubber
Claw Weight (gr) 2250 g
Claw Milk Capacity 1 x 240cc
Milk Hose (mm) 1 x 1500mm (25 x 16mm)
Pulse Hose (mm) 1 x 1500mm (14 x 7mm)
Vacuum Hose (mm) 1 x 3000mm (24 x 14mm)

Single Bucket Milking Machine

Model MWT1- Super 01 hp

Structure

Machine structure Mild Steel
Paint type Powder Coated
Paint Blue , Red, Green (glossy)
Vacuum regulator Spring type
Vacuum Gauge Pneumatic
Front wheel 2
Rear wheel 2

Accessories

Cleaning Brushes 2 Cleaning brushes (1x Long milk tube brush , 1x Liner cleaning Brush)
Extra Working Manual and Warranty Card
