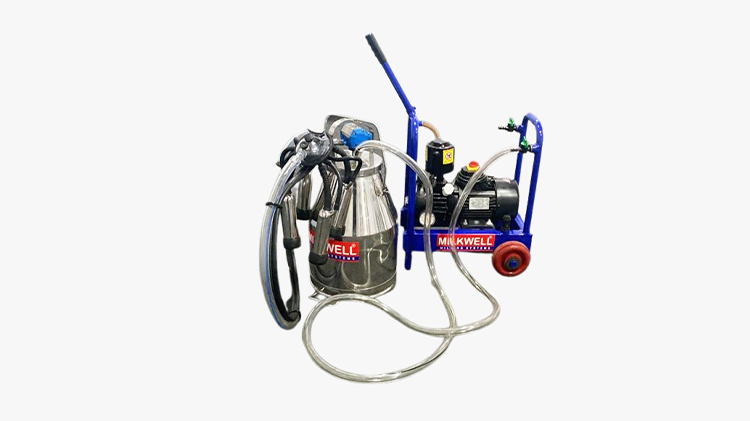

Milkwell Portable type Milking Machine Model MWT1 Advantage is well suitable milking equipment for a dairy farm of 01 to 15 milking animals
This machine is expandable up to 03 milking at a time if farmers wanted to increase heard size in future they can add 02 more bucket milking cluster on this machine.
Vacuum Pump
Motor Power | 01 hp |
Rotation (rpm) | 1440 rpm |
voltage (V) | 220V |
Pump Type | Oil re-circulatory oil chamber |
Flow (L/min) | 220 L/min |
Exhaust | Oil circulatory silencer |
Milking Assembly
Teat shell | Stainless steel |
Teat Shell | Stainless Steel |
Milk Can | Stainless 304 |
Bucket Capacity (L) | 1×25 Liter |
Liner Type | Rubber |
Claw Weight (gr) | 2250 g |
Claw Milk Capacity | 1 x 240cc |
Milk Hose (mm) | 1 x 1500mm (25 x 16mm) |
Pulse Hose (mm) | 1 x 1500mm (14 x 7mm) |
Vacuum Hose (mm) | 1 x 3000mm (24 x 14mm) |
Structure
Machine structure | Mild Steel |
Paint type | Powder Coated |
Paint | Blue , Red, Green (glossy) |
Vacuum regulator | Spring type |
Vacuum Gauge | Pneumatic |
Front wheel Rear wheel |
2 0 |
Accessories
Cleaning Brushes | 2 Cleaning brushes (1x Long milk tube brush , 1x Liner cleaning Brush) |
Extra | Working Manual and Warranty Card |
