Product Description

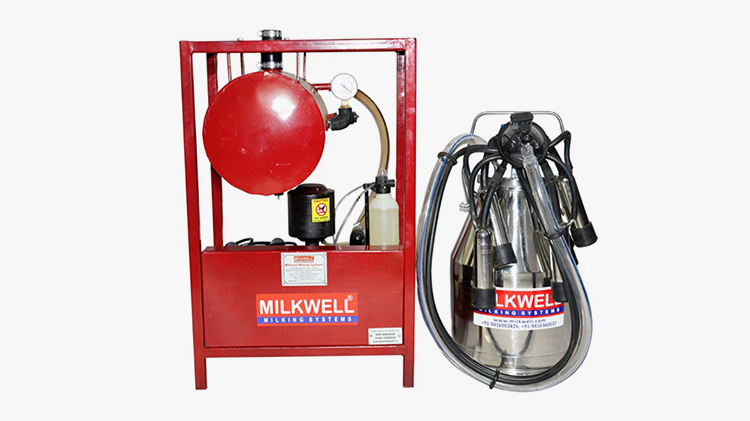

Single Bucket fixed Milking Machine
Model MW1 Standard Belt driven 01hp
Description:- Milkwell Fixed type Milking Machine Model MW1 Belt driven is well suitable milking equipment for a dairy farm of 01 to 20 milking animals
This machine is expandable up to 03 milking at a time if farmers wanted to increase heard size in future they can add 02 more bucket milking cluster on this machine
Vacuum Pump
| Motor Power | 1 hp Belt Driven |
| Rotation (rpm) | 1440 rpm |
| voltage (V) | 220V |
| Pump Type | Belt driven Oil re-circulatory Oil Chamber |
| Flow (L/min) | 240 L/min @ 50kpa |
| Exhaust | Oil circulatory silencer |
Milking Assembly
| Teat shell | Stainless steel |
| Milk Can | Stainless Steel 304 |
| Bucket Capacity (L) | 25 Liter |
| Liner Type | Rubber |
| Claw Weight (gr) | 2250 g |
| Claw Milk Capacity | 1 x 240cc |
| Milk Hose (mm) | 1 x 1500mm (25 x 16mm) |
| Pulse Hose (mm) | 1 x 1500 mm (14 x 7mm) |
| Vacuum Hose (mm) | 1 x 3000mm (24 x 14mm) |
Single Bucket fixed Milking Machine
Model MW1 Standard Belt driven 01hp
Structure
| Machine structure | Mild Steel |
| Paint type | Powder Coated |
| Paint | Blue , Red, Green (glossy) |
| Vacuum regulator | Fitted in vacuum bottle tank |
| Vacuum Gauge | Fitted in vacuum bottle tank |
| Structure | Type square with vacuum balance tank with can carriers |
Accessories
| Cleaning Brushes | 2 Cleaning brushes (1x Long milk tube brush , 1x Liner cleaning Brush) |
| Extra | Working Manual and Warranty Card |
