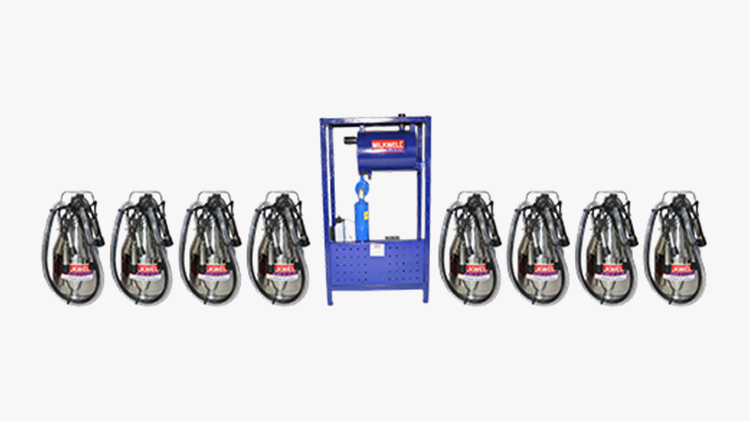

Stationary Fixed Vacuum Line Milking Machine
Model – MW8
Description:- Milkwell Fixed type Milking Machine Model MW8 is well suitable milking equipment for a dairy farm of 01 to 80 milking animals
SEMI Portable Fixed Vacuum Unit and Fixed Vacuum line in dairy shed with Buckets of 30 liters each along with transparent lid , Can and cluster assembly on two wheel trolley.
Vacuum Pump
Motor Power | 3 hp Belt Driven |
Rotation (rpm) | 1440 rpm |
voltage (V) | 350 V |
Pump Type | Oil re-circulatory Oil Chamber |
Flow (L/min) | 850 L/min @ 50kpa |
Exhaust | Oil circulatory silencer |
Milking Assembly
Teat shell | Stainless steel |
Milk Can | Stainless Steel 304 |
Bucket Capacity (L) | 8 x 25 Liter |
Liner Type | Rubber |
Claw Weight (gr) | 2250 g |
Claw Milk Capacity | 8 x 240cc |
Milk Hose (mm) | 8 x 1500mm (25 x 16mm) |
Pulse Hose (mm) | 8 x 1500 mm (14 x 7mm) |
Vacuum Hose (mm) | 8 x 3000mm (24 x 14mm) |
Stationary Fixed Vacuum Line Milking Machine
Model – MW8
Structure
Machine structure | Mild Steel |
Paint type | Powder Coated |
Paint | Blue , Red, Green (glossy) |
Vacuum regulator | Fitted in vacuum bottle tank |
Vacuum Gauge | Fitted in vacuum bottle tank |
Structure | Type square with vacuum balance tank |
Accessories
Cleaning Brushes | 2 Cleaning brushes (1x Long milk tube brush , 1x Liner cleaning Brush) |
Extra | Working Manual and Warranty Card |
