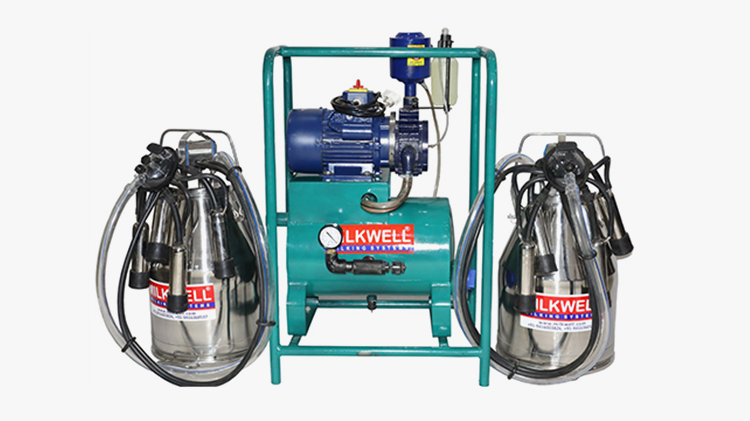

Double Bucket Fix Type Milking Machine (Monoblock Type)

Product Description

Stationary Fixed Vacuum Line Milking Machine

Model – MW2

Descriptions :- Milkwell Fixed type Milking Machine Model MW2 is well suitable milking equipment for a dairy farm of 01 to 30 milking animals

This machine is expandable up to 03 milking at a time if farmers wanted to increase heard size in future they can add 01 more bucket milking cluster on this machine

Vacuum Pump

Motor Power 1 hp
Rotation (rpm) 1440 rpm
voltage (V) 220V
Pump Type Oil re-circulatory oil chamber
Flow (L/min) 240 L/min @ 50kpa
exhaust Oil circulatory silencer

Milking Assembly

Teat shell Stainless steel
Milk Can Stainless Steel 304
Bucket Capacity (L) 2 x 25 Liter
Liner Type Rubber
Claw Weight (gr) 2250 g
Claw Milk Capacity 2 x 240cc
Milk Hose (mm) 2 x 1500mm (25 x 16mm)
Pulse Hose (mm) 2 x 1500mm (14 x 7mm)
Vacuum Hose (mm) 2 x 3000mm (24 x 14mm)

Structure

Machine structure Mild Steel
Paint type Powder Coated
Paint Blue , Red, Green (glossy)
Vacuum regulator Fitted in vacuum bottle tank
Vacuum Gauge Fitted in vacuum bottle tank
Structure type Square with vacuum balance tank

Accessories

Cleaning Brushes 2 Cleaning brushes (1x Long milk tube brush , 1x Liner cleaning Brush)
Extra Working Manual and Warranty Card
