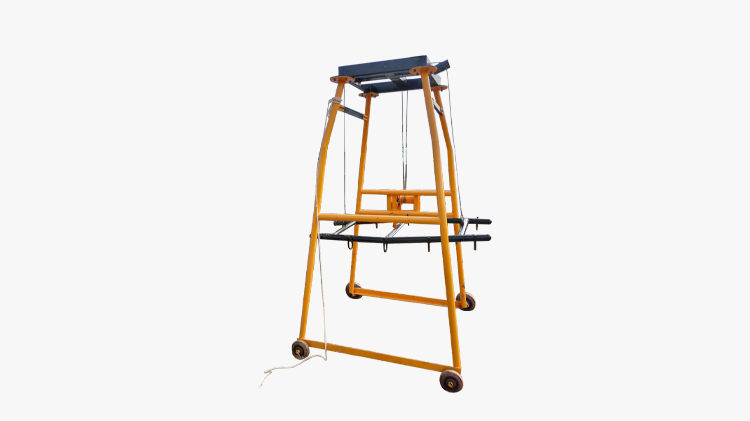

Cow Lifting Machine / Animal Lifting Hoist

Dairy farmers often come across Cows and Buffalos with the “Downer Syndrome” unable to stand up needs to be treated by lifting the heavy animals to avoid complications of bed sores and nervous debility by improving circulation by massage.

This Animal lifting Equipment helps to lift the animal for the treatment as well as close examination and evaluation.

"Downer cow syndrome" is refers to the inability of cattle to rise and stand for a period of at least 12–24 hours for undetermined reason. Treatment is guided by the cause; supportive care is of major importance to improving the prognosis.

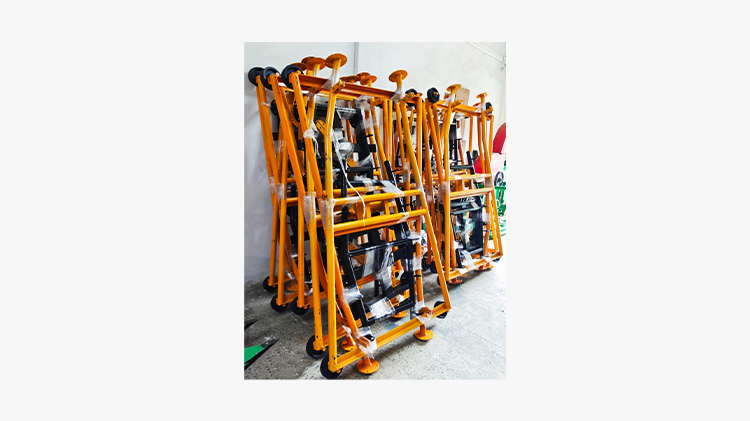

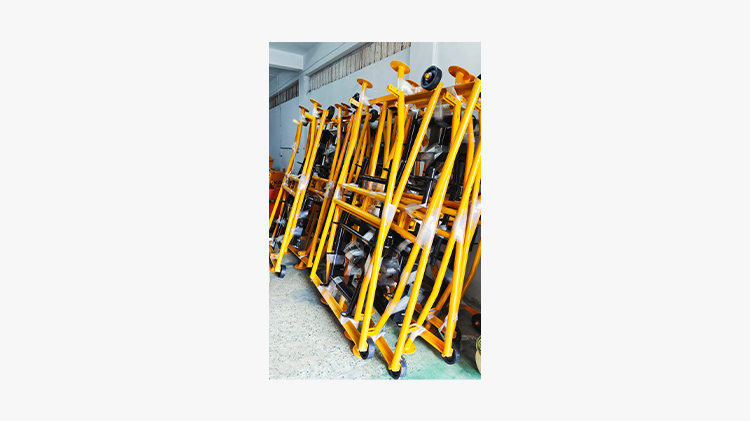

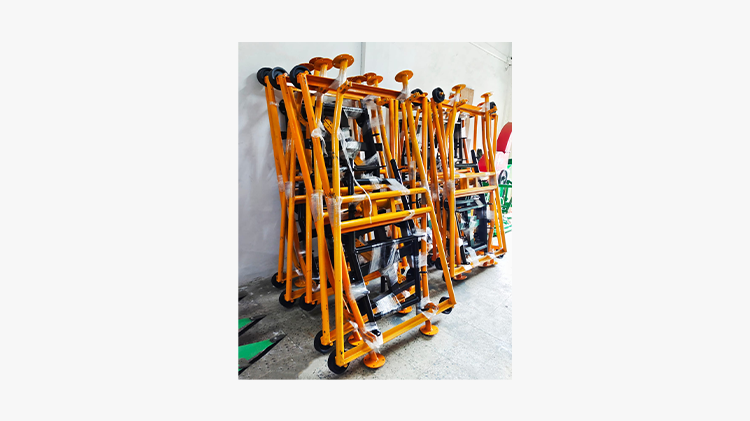

SARALAGRO PVT. LTD. Has been manufacturing and supplying this machine from last 5 year across India and Abroad. The machine is foldable hence occupying lesser space and easy to carry and it is suitable for lifting animals up to 800 kg.

Specifications

    Type: Foldable
  • Worm drive Gear with 4 bearing (Bearing No. 6005)
  • Material: M.S. Round Pipe 3mm thickness (48 mm Outer diameter)
  • Weight: 120 Kg
  • Dimensions (W x H x L) = 20inch x 90inch x 51inch
  • Lifting capacity: Up to 800 kg
  • Belt fabric: Canvas, Nylon, and PVC with SS rings
  • Wire rope material: SS
  • 4 no. of solid rubber wheels for easy movement.

COW LIFTING MACHINE USES:

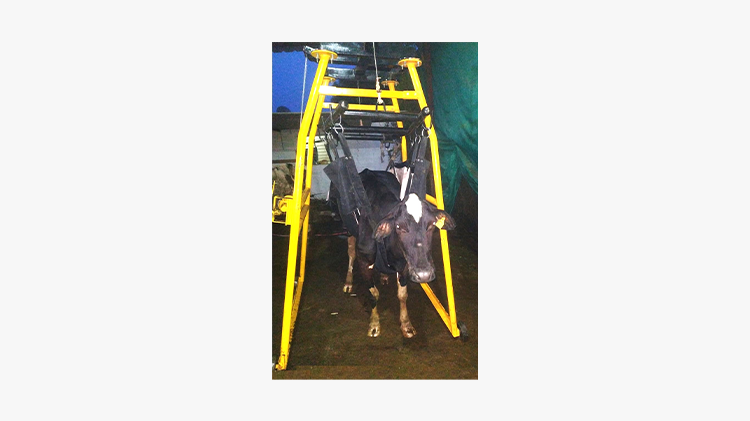

  • Equipment to be taken to the site of recumbent animal and place it in such a way that the animal is in the middle of the equipment.
  • Fix the belt passing through the ventricle surface of the body from front portion to back ward one by one fixing the 8 hooks on either side and secure it well.
  • Slowly lift the animal by operating the handle of the pulley by rotating from left to right.
  • Animal to be lifted to the height so that it can stand on its four limbs.
  • Massage the body to increase the circulation.
  • Veterinarian to decide course of treatment observing the improvement in bearing the load on itself.

MAINTAINENCE:

  • For its long shelf life, the equipment is to be maintained in the premises.
  • The equipment is to be kept in a clean and dry condition.
  • The belt is to be washed and dried after the usage and stored in a bag.
  • Gear box system needs greasing once in a month.
  • Trolley wheel to be greased regularly once in a month.
